Airflow I
Current Position：Home > COX Applicators > Airflow I
A range of pneumatic applicators using Cox's heavy duty handles making this range ideal for the most rigorous applications indoors and out.

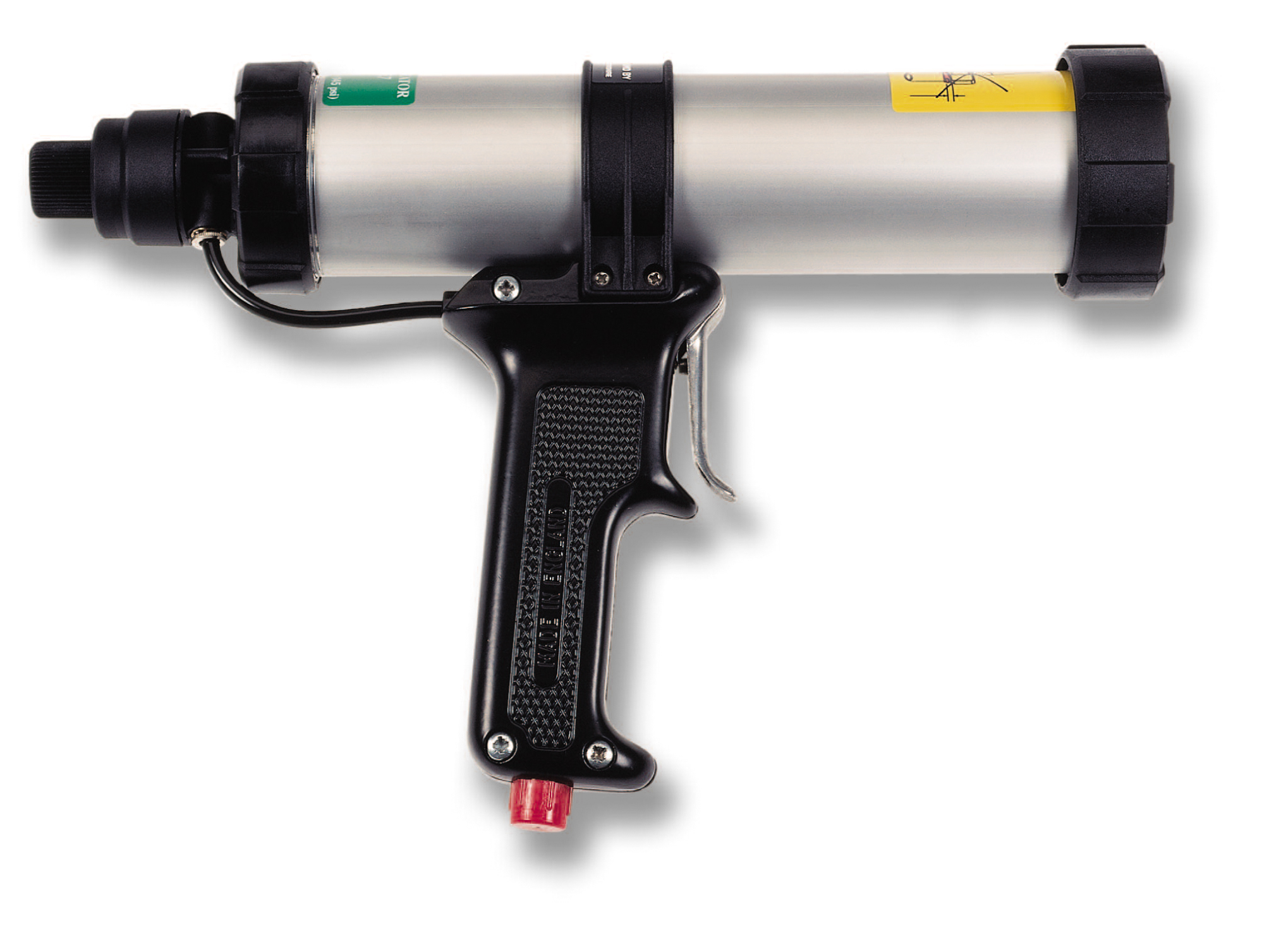

Airflow I Cartridge

Pneumatic applicator for cartridges
2 sizes for 310ml and 400ml cartridges
1.45kN (145kgf) thrust at 6.8 bar operating pressure check thrust again
Direct acting piston seals directly onto cartridge plunger
Quick exhaust valve minimizes ‘flow on’
Easily adjustable pressure regulator
Heavy duty handle (suitable for outdoor use)

Airflow I Sachet

Pneumatic applicator for sachets
Dispenses 310ml, 400ml and 600ml sachets
1.45kN (145kgf) thrust at 6.8 bar operating pressure
Available in 3 standard barrel lengths (aluminium)
Tethered piston and plunger action
Quick exhaust valve minimizes ‘flow on’
Easily adjustable pressure regulator
Variety of plungers, nozzles and accessories available (Link to Accessories page)
Heavy duty handle (suitable for outdoor use)

Airflow I Combi

Pneumatic applicator for cartridges and sachets
Dispenses 310ml, 400ml and 600ml sachets
Dispenses 310ml and 400ml cartridges
Also suitable for 150ml co-axial cartridges
1.45kN (145kgf) thrust at 6.8 bar operating pressure
Separate interchangeable front barrels in 3 standard sizes (aluminium)
Piston-driven rod action
Quick exhaust valve minimizes ‘flow on’
Easily adjustable pressure regulator.
Particularly suitable for use with aluminium cartridges.

Airflow I Combi HP

Pneumatic applicator for cartridges and sachets
High pressure version of Airflow I Combi, for use with ultra high viscosity sealants
Dispenses 310ml, 400ml and 600ml sachets
Dispenses 310ml and 400ml cartridges
Also suitable for 150ml co-axial cartridges
2.2kN (220kgf) thrust at 6.8 bar operating pressure
Separate interchangeable front barrels in 3 standard sizes
Piston-driven rod action
Quick exhaust valve minimizes ‘flow on’
Easily adjustable pressure regulator
Particularly suitable for use with aluminium cartridges

Airflow I Quart

Pneumatic applicator for long (320 x 67mm) 946ml (US Quart) cartridges
145kgf (1.45kN) thrust at 6.8 bar operating pressure
Piston-driven rod action
Quick exhaust valve minimizes ‘flow on’
Easily adjustable pressure regulator

Airflow I 1000L

Pneumatic applicator for long (324 x 71mm) 1-litre cartridges
1.45kN (145kgf) thrust at operating pressure 6.8 bar
Quick exhaust valve minimizes ‘flow on’
Easily adjustable pressure regulator

Airflow I 1000S

Pneumatic applicator for short (240 x 91mm) 1 litre cartridges
1.2kN (120kgf) thrust at 6.8 bar operating pressure
Direct acting piston seals directly onto cartridge plunger
Quick exhaust valve minimizes ‘flow on’
Easily adjustable pressure regulator

Airflow I Bulk

Large volume pneumatic applicator for speciality use
Designed for low viscosity (pouring grade) bulk materials
3 standard capacities: 2, 3 and 4 litre
1.45kN (145kgf) thrust at 6.8 bar operating pressure
Tethered piston and plunger action
Quick exhaust valve minimizes ‘flow on’
Easily adjustable pressure regulator
Also suitable for use with sachets
Quick release aluminium end caps for easy loading.
